TM 9-2320-360-34-1
WARNING
Transmission weighs approximately
1125
lb
(510
kg).
Support
transmission during removal. Failure
to comply may result in serious
injury to personnel.
(3)

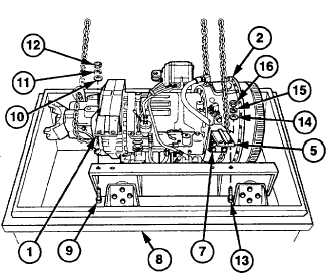

Align and install transmission (2) in lower
container (8).
(4)
Install four screws (9), washers (10), new
lockwashers (11), and nuts (12) on two
rear mounts (1). Do not tighten.
(5)
Install four screws (13), washers (14), new
lockwashers (15), and nuts (16) on two
front mounts (5). Do not tighten.
(6)
Torque eight screws (3) to 71-83 lb-ft
(96-113 Nm).
(7)
Torque eight screws (6) to 98-115 lb-ft
(133-156 Nm).
(8)
Torque eight nuts (12) and (16) to 31-37
Ib-ft (42-50 Nm).
(9)
Remove lifting device.
d.
Upper Container Installation
WARNING
Keep out from under heavy parts.
Falling parts may result in serious
injury to personnel.
(1)
Install upper container
(1) on lower
container (2).
NOTE
When tightening nuts, use crisscross
pattern working around container.
(2)
Install 22 screws (3), new lockwashers (4),
and nuts (5) in upper container (1) and
lower container (2). Torque to 31-37 lb-ft
(42-50 Nm).
Change 1 7-5
|
