7-3. TRANSMISSION CONTAINER UNPACKING/PACKING (CONT)
b.
Transmission Removal
(1)
Attach
suitable
lifting
device
to
transmission (1).

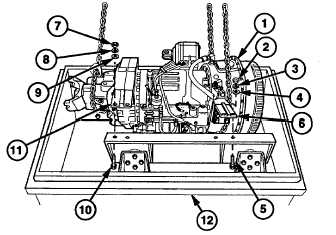

(2)
Remove four nuts (2), lockwashers (3),
washers (4), and screws (5) from two front
mounts (6). Discard lockwashers.
(3)
Remove four nuts (7), lockwashers (8),
washers (9), and screws (10) from two
rear mounts (11). Discard lockwashers.
WARNING
Transmission weighs approximately
1125
lb
(510
kg).
Support
transmission during removal. Failure
to comply may result in serious
injury to personnel.
(4)
Remove transmission (1) from lower
container (12).
(5)

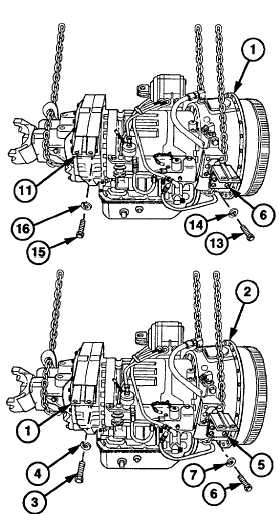

Remove eight screws (13), lockwashers
(14) and two front mounts (6) from
transmission (1). Discard lockwashers.
(6)
Remove eight screws (15), lockwashers
(16) and two rear mounts (11) from
transmission (1). Discard lockwashers.
c.
Transmission Installation
(1)
Install two rear mounts (1) on transmission
(2) with eight screws (3) and new
lockwashers (4). Do not tighten.
(2)
Install
two
front
mounts
(5)
on
transmission (2) with eight screws (6) and
new lockwashers (7). Do not tighten.
