6-16. ENGINE BRAKE RETARDER WIRE HARNESS REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
Initial Setup:
Equipment Condition
Materials/Parts
Batteries disconnected (TM 9-2320-360-20).
Tags, Identification (Item 56, Appendix B)
Rocker covers removed (TM 9-2320-360-20).
Ties, Cable, Plastic (Item 60, Appendix B)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
a.
Removal
NOTE
·
Engine brake wire harness is
removed from left and right
cylinder heads the same way.
·
Location of plastic cable ties
should
be
marked
before
removal.
·
Tag
and
mark
wires before
removal.
(1)

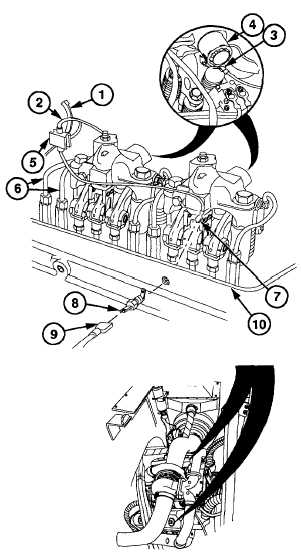

Remove plastic cable tie (1) securing
engine brake wire harness (2).
CAUTION
Pull
back
protective
sleeve
on
connectors prior to removing. Do not
pull on wires of harness to remove
connectors. Failure to comply may
result in damage to solenoid and/or
harness.
(2)
Disconnect
two
connectors
(3)
from
engine brake solenoids (4).
(3)
Remove rubber harness support (5) from
injector lines (6).
(4)
Disconnect spade connector (7) from
terminal assembly (8).
(5)
Disconnect spade connector (9) from
terminal assembly (8).
(6)
Remove
terminal
assembly
(8)
from
cylinder head (10).
(7)
Remove engine brake wire harness (2)
from cylinder head (10).
