TM 9-2320-360-34-1
b.
Installation
NOTE
Engine
brake
wire
harness
is
installed in left and right cylinder
heads the same way.
(1)

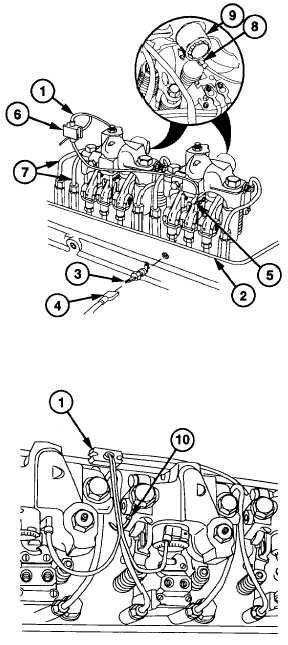

Install engine brake wire harness (1) on
cylinder head (2).
(2)
Install terminal assembly (3) in cylinder
head (2).
(3)
Connect spade connector (4) to terminal
assembly (3).
(4)
Connect spade connector (5) to terminal
assembly (3).
(5)
Install rubber harness support (6) to
injector lines (7).
NOTE
Ensure that the locking connector is
fully engaged on the male terminal.
Inspect to ensure sufficient clearance
exists between the locking connector
and the brake solenoid boss. If
necessary, the male terminal can be
bent slightly to provide adequate
clearance.
(6)
Connect two connectors (8) to engine
brake solenoids (9).
CAUTION
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal. Failure to comply
may result in damage to wire
harness or connector.
(7)
Secure engine brake wire harness (1) with
plastic cable tie (10).
c.
Follow-On Maintenance
(1)
Install rocker covers (TM 9-2320-360-20).
(2)
Connect batteries (TM 9-2320-360-20).
Change 2 6-193 (6-194 blank)
|
