TM 9-2320-360-34-1
(4)

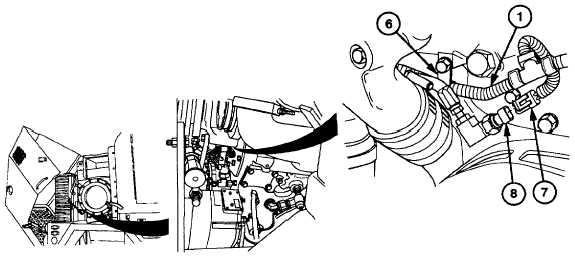

Install DDEC Ill wire harness (1) in clip (6)
and close clip.
(5)
Install electrical connector (7) on oil
temperature sender (8).
(6)

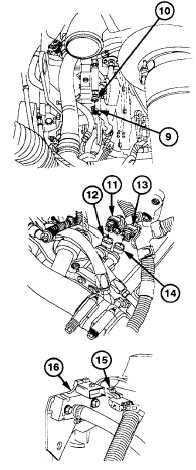

Install electrical connector (9) on fuel
temperature sensor (10).
(7)
Install electrical connector (11) on TRS
sensor (12).
(8)
Install electrical connector (13) on SRS
sensor (14).
(9)
Install electrical connector (15) on turbo
boost sensor (16).
Change 3 6-192.5
|
