TM 9-2320-360-34-1
6-15. DDEC II WIRE HARNESS REPLACEMENT (CONT).
(11)

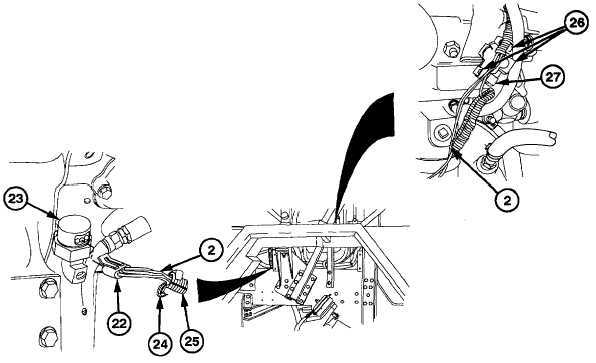

Remove electrical connector (22)
from oil pressure sender (23).
(12)
Remove clip (24) and wire loom
(25) from oil pressure sensor
portion of DDEC II wire harness
(2).
(13)
Open three clips (26) and remove
tee (27) from DDEC II wire
harness (2).
(14)

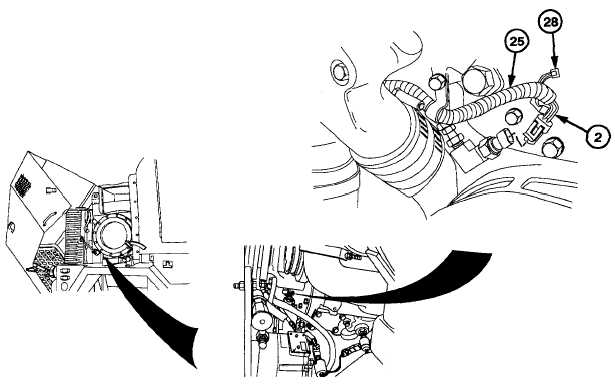

Remove clip (28) and wire loom
(25) from oil temperature sender
portion of DDEC II wire harness
(2).
(15)
Remove DDEC II wire harness (2)
from engine.
6-188 Change 3
|
