TM 9-2320-360-34-1
(6)

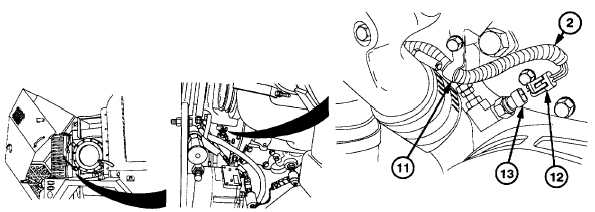

Open clip (11) and remove DDEC
II wire harness (2) from clip (11).
(7)
Remove electrical connector (12)
from oil temperature sender (13).
(8)

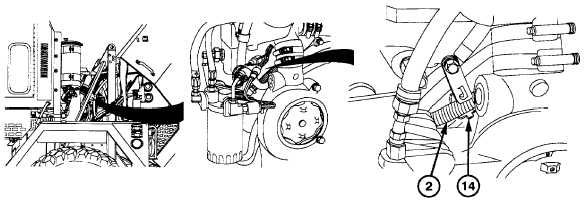

Open clip (14) and remove DDEC
II wire harness (2) from clip (14).
(9)
Deleted.
(10)

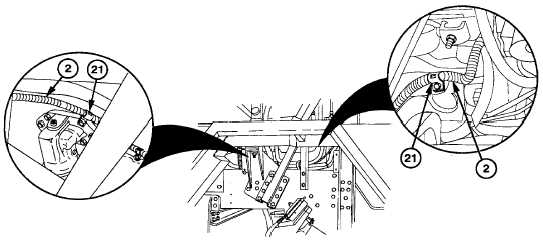

Open two clips (21) and remove
DDEC II wire harness (2) from
clips (21).
Change 3 6-187
|
