TM 9-2320-360-34-1
6-15. DDEC II WIRE HARNESS REPLACEMENT (CONT)
NOTE
Connectors are removed by gently
prying
on
tab
and
pulling
on
connector.

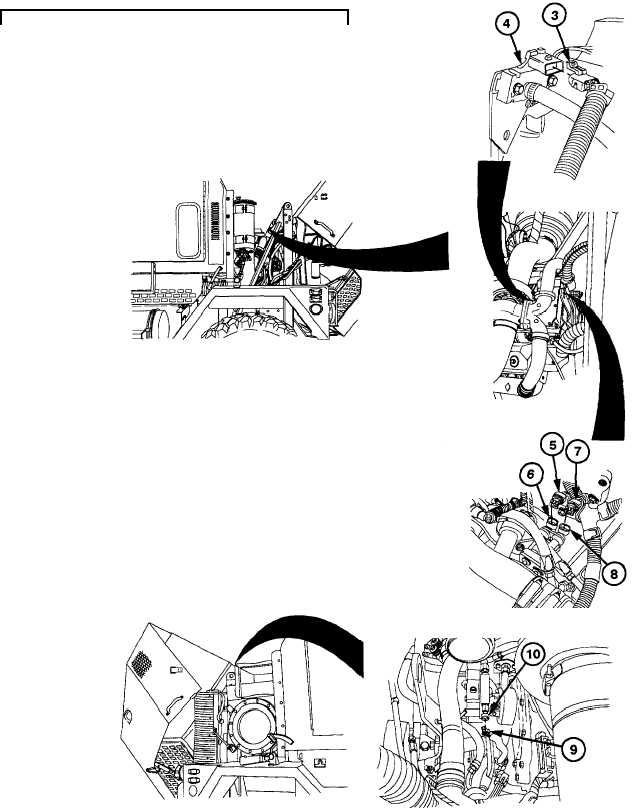

(2)
Remove electrical connector (3)
from turbo boost sensor (4).
(3)
Remove electrical connector (5)
from SRS sensor (6).
(4)
Remove electrical connector (7)
from TRS sensor (8).
(5)
Remove electrical connector (9)
from fuel temperature sensor (10).
6-186 Change 3
|
