TM 9-2320-360-34-1
b.
Installation
NOTE
Evenly
distribute
any
slack
in
harness.
Do
not
make
any
connections.
(1)

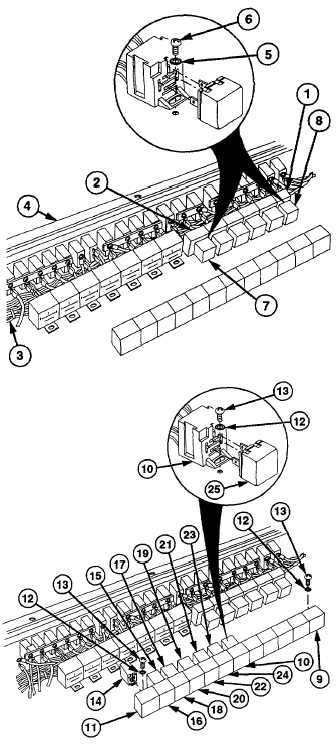

Lift up on relay sockets no. 1 thru 6 (1
and 2) and position electronic control box
wire harness (3) in electronic control box
(4).
(2)
Install relay sockets no. 1 (1) and no. 6
(2) on electronic control box (4) with new
lockwashers (5) and screws (6).
NOTE
Relays no. 9, 7, and 26 are 24-volt
(gold) relays. All others are 12 volt
(silver).
(3)
Install relay no. 6 (7) in socket (2).
(4)
Install relay no. 1 (8) in socket (1).
(5)
Install relay socket no. 11 (9), relay
socket no. 20 (10), and relay socket no.
12 (11) on electronic control box (4) with
three new lockwashers (12) and screws
(13).
(6)
Install relay no. 12 (14) in socket (11).
(7)
Install relay no. 26 (15) in socket (16).
(8)
Install relay no. 7 (17) in socket (18).
(9)
Install relay no. 15 (19) in socket (20).
(10)
Install relay no. 25 (21) in socket (22).
(11)
Install relay no. 24 (23) in socket (24).
(12)
Install relay no. 20 (25) in socket (10).
6-173
|
