TM 9-2320-360-34-1
6-13. ELECTRONIC CONTROL BOX WIRE HARNESS REPLACEMENT (CONT)
(55)

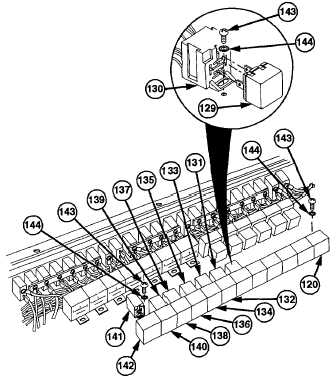

Remove relay no. 20 (129) from socket
(130).
(56)
Remove relay no. 24 (131) from socket
(132).
(57)
Remove relay no. 25 (133) from socket
(134).
(58)
Remove relay no. 15 (135) from socket
(136).
(59)
Remove relay no. 7 (137) from socket
(138).
(60)
Remove relay no. 26 (139) from socket
(140).
(61)
Remove relay no. 12 (141) from socket
(142).
(62)
Remove
three
screws
(143)
and
lockwashers (144) from relay socket no.
11 (120), relay socket no. 20 (130), and
relay socket no. 12 (142). Discard
lockwashers.
NOTE
Locations of plastic cable ties should
be marked before removal.
(63)
Remove plastic cable ties (92) securing
control box wire harness (145).
(64)

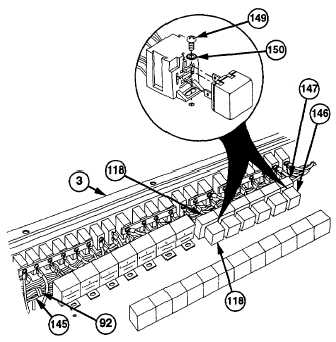

Remove relay no. 1 (146) from socket
(147).
(65)
Remove relay no. 6 (148) from socket
(118).
(66)
Remove
two
screws
(149)
and
lockwashers (150) from relay socket no. 1
(147) and relay socket no. 6 (118).
Discard lockwashers.
(67)
Lift up on relay sockets no. 1 thru 6 (147
and 118) and remove electronic control
box wire harness (145) from electronic
control box (3).
6-172
|
