TM 9-2320-360-34-1
6-13. ELECTRONIC CONTROL BOX WIRE HARNESS REPLACEMENT (CONT)
(13)

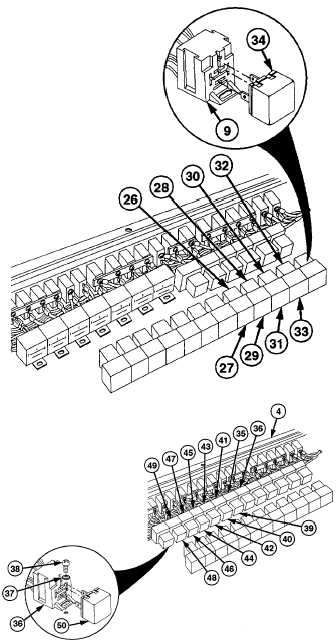

Install relay no. 19 (26) in socket (27).
(14)
Install relay no. 18 (28) in socket (29).
(15)
Install relay no. 17 (30) in socket (31).
(16)
Install relay no. 16 (32) in socket (33).
(17)
Install relay no. 11 (34) in socket (9).
NOTE
Relay
sockets
are
installed
by
aligning tab on relay socket no. 9
with slot on relay socket no. 6 and
pushing relay sockets no. 9, 27, 28,
30, 8, 10, and 29 down in position.
(18)
Install relay socket no. 9 (35) in relay
socket no. 6 (2).
(19)
Install relay socket no. 29 (36) on
electronic
control
box
(4)
with
new
lockwasher (37) and screw (38).
(20)
Install relay no. 9 (39) in socket (35).
(21)
Install relay no. 27 (40) in socket (41).
(22)
Install relay no. 28 (42) in socket (43).
(23)
Install relay no. 30 (44) in socket (45).
(24)
Install relay no. 8 (46) in socket (47).
(25)
Install relay no. 10 (48) in socket (49).
(26)
Install relay no. 29 (50) in socket (36).
6-174
|
