TM 9-2320-360-34-1
NOTE
All relays are removed the same way.
(41)

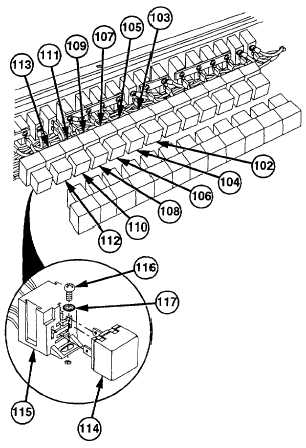

Remove relay no. 9 (102) from socket
(103).
(42)
Remove relay no. 27 (104) from socket
(105).
(43)
Remove relay no. 28 (106) from socket
(107).
(44)
Remove relay no. 30 (108) from socket
(109).
(45)
Remove relay no. 8 (110) from socket
(111).
(46)
Remove relay no. 10 (112) from socket
(113).
(47)
Remove relay no. 29 (114) from socket
(115).
(48)
Remove screw (116) and lockwasher
(117) from relay socket no. 29 (115).
Discard lockwasher.
NOTE
Pulling up on relay socket no. 9 will
separate relay sockets from relay
socket no. 6.
(49)
Remove relay socket no. 9 (103) from
relay socket no. 6 (118).
(50)

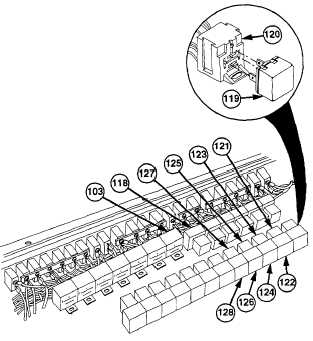

Remove relay no. 11 (119) from socket
(120).
(51)
Remove relay no. 16 (121) from socket
(122).
(52)
Remove relay no. 17 (123) from socket
(124).
(53)
Remove relay no. 18 (125) from socket
(126).
(54)
Remove relay no. 19 (127) from socket
(128).
