TM 9-2320-360-34-1
6-13. ELECTRONIC CONTROL BOX WIRE HARNESS REPLACEMENT (CONT)
(36)

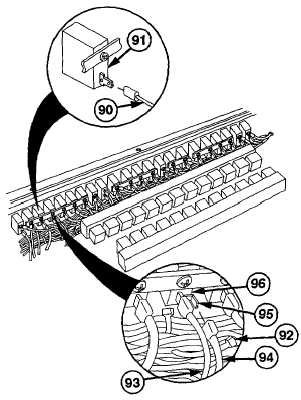

Remove wire no. 1739 (90) from
winch/PTO/air dryer/GPF/HI IDLE circuit
breaker (91).
NOTE
Location of plastic cable ties should
be marked before removal.
(37)
Remove plastic cable tie (92) securing
radio harness (93) to wire no. 1717 (94).
(38)
Remove wire no. 1717 (94) from
connector (95) on radio harness (93) at
radio/chemical alarm circuit breaker (96).
(39)

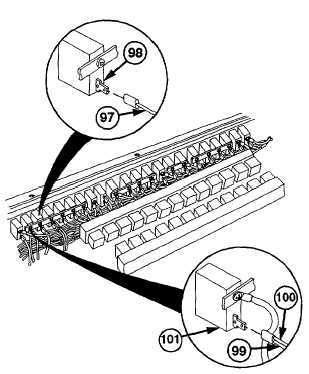

Remove wire no. 1487 (97) from
fuel/water
separator/transmission
modulator/ether start circuit breaker (98).
(40)
Remove wire no. 1676 (99) and wire no.
10 (100) from trailer lights circuit breaker
(101).
6-170
|
