TM 9-2320-360-34-1
(31)

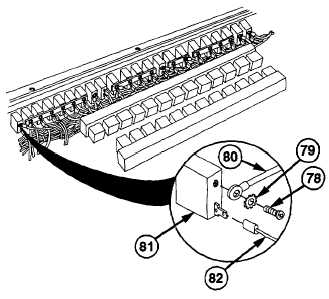

Remove screw (78), lockwasher (79), and
wire no. 1281 (80) from trailer turn signal
circuit breaker (81). Discard lockwasher.
(32)
Remove wire no. 1282 (82) from trailer
turn signal circuit breaker (81).
NOTE
Connector is removed by gently
prying up on clip and pulling on
connector.
(33)

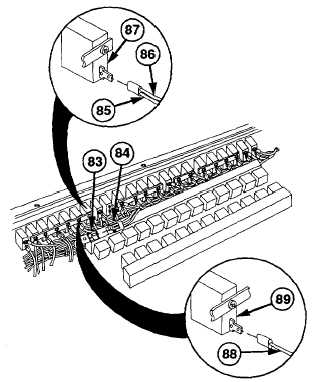

Remove electrical connector (83) from
electronic control box/light wire harness
connector (84).
(34)
Remove wire no. 1082 (85) and wire no.
1340 (86) from heater circuit breaker (87).
(35)
Remove wire no. 1886 (88) from CTI
circuit breaker (89).
6-169
|
