6-13. ELECTRONIC CONTROL BOX WIRE HARNESS REPLACEMENT (CONT)
(11)

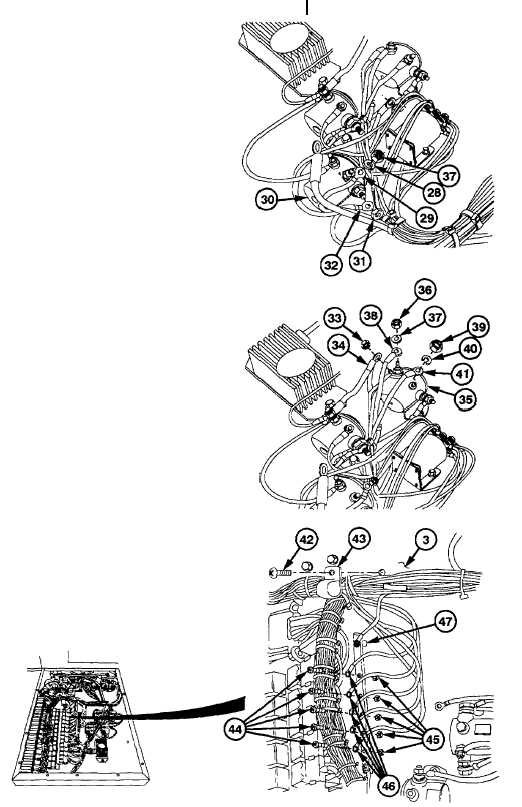

Remove nut (27), lockwasher (28), and wire no.
1189 (29) from relay (30). Discard lockwasher.
(12)
Remove nut (31) and wire no. 1107 (32) from
relay (30).
(13)
Remove nut (33) and wire no. 1045 (34) from
relay (35).
(14)
Remove nut (36), lockwasher (37), and ground
wire no. 1435 (38) from relay (35). Discard
lockwasher.
(15)
Remove nut (39), lockwasher (40), and wire no.
1055 (41) from relay (35). Discard lockwasher.
(16)
Remove screw (42) and cushion clip (43) from
electronic control box (3).
(17)
Remove five screws (44), locknuts (45), and
eight ground wires no. 1435 (46) from ground
strip (47). Discard locknuts.
