TM 9-2320-360-34-1
(4)

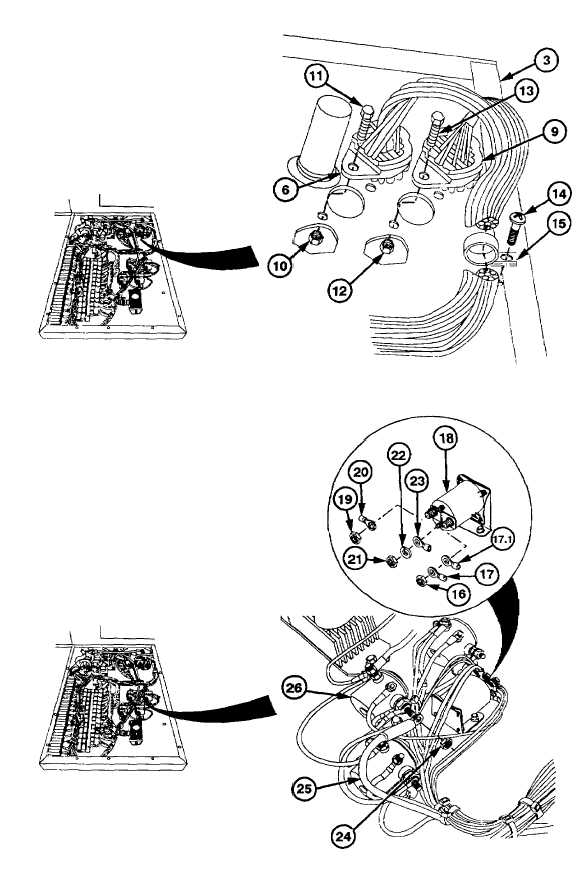

Remove two locknuts (10), screws (11), and cab
wire harness green connector (6) from electronic
control box (3). Discard locknuts.
(5)
Remove two locknuts (12), screws (13), and cab
wire
harness
orange
connector
(9)
from
electronic control box (3). Discard locknuts.
(6)
Remove screw (14) and cushion clip (15) from
electronic control box (3).
(7)
Remove nut (16), wire no. 1702 (17), and wire
no. 1488 (17.1) from relay (18).
(8)
Remove nut (19) and wire no. 1281 (20) from
relay (18).
(9)
Remove nut (21), lockwasher (22), and wire no.
1640 (23) from relay (18). Discard lockwasher.
(10)
Remove nut (24) and wire no. 1402 (25) from
relay (26).
Change 1 6-165
|
