TM 9-2320-360-34-1
6-13. ELECTRONIC CONTROL BOX WIRE HARNESS REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
Diagnostic request switch removed, DDEC III
Ties, Cable, Plastic (item 60, Appendix B)
only (TM 9-2320-360-20).
Locknuts (5) (Item 91, Appendix F)
Batteries disconnected (TM 9-2320-360-20).
Locknuts (4) (Item 96, Appendix F)
Access panels removed (TM 9-2320-360-20).
Lockwashers (8) (Item 128, Appendix F)
Lockwashers (3) (Item 112, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
a. Removal
(1)

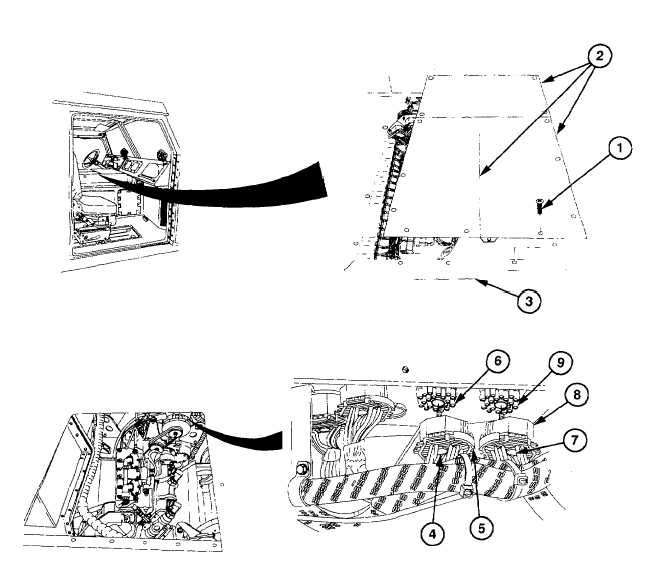

Remove 19 screws (1) and 3 panels (2) from
electronic control box (3).
(2)
Loosen screw (4) and remove green electrical
connector (5) from cab wire harness green
connector (6).
(3)
Loosen screw (7) and remove orange electrical
connector (8) from cab wire harness orange
connector (9).
6-164 Change 3
|
