TM 9-2320-360-34-1
NOTE
All relays are removed the same way.
(22)

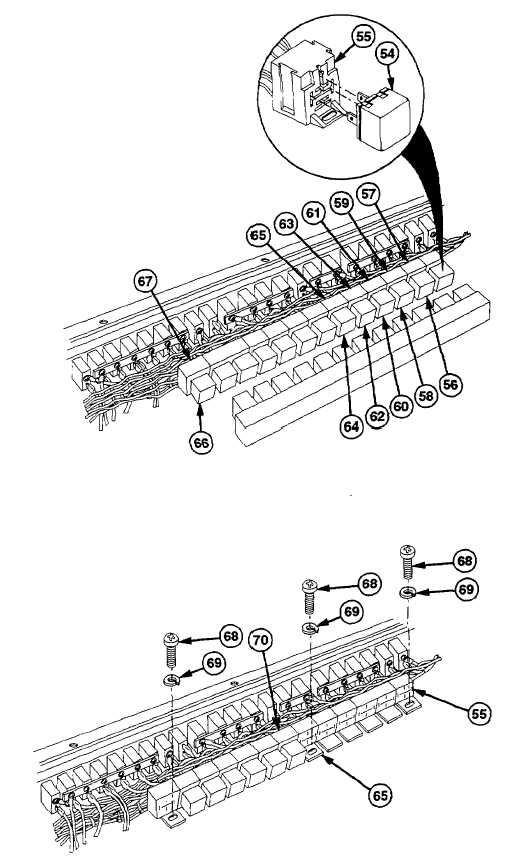

Remove relay no. 1 (54) from socket (55).
(23)
Remove relay no. 2 (56) from socket (57).
(24)
Remove relay no. 3 (58) from socket (59).
(25)
Remove relay no. 4 (60) from socket (61).
(26)
Remove relay no. 5 (62) from socket (63).
(27)
Remove relay no. 6 (64) from socket (65).
(28)
Remove relay no. 29 (66) from socket (67).
(29)
Remove three screws (68) and lockwashers (69)
from relay socket no. 1 (55), relay socket no. 6
(65), and relay socket no. 29 (67). Discard
lockwashers.
NOTE
Hold down relay sockets no. 1 thru
no. 6 while pulling up on relay
socket no. 9.
(30)
Remove relay socket no. 6 (65) from relay
socket no. 9 (70).
6-157
|
