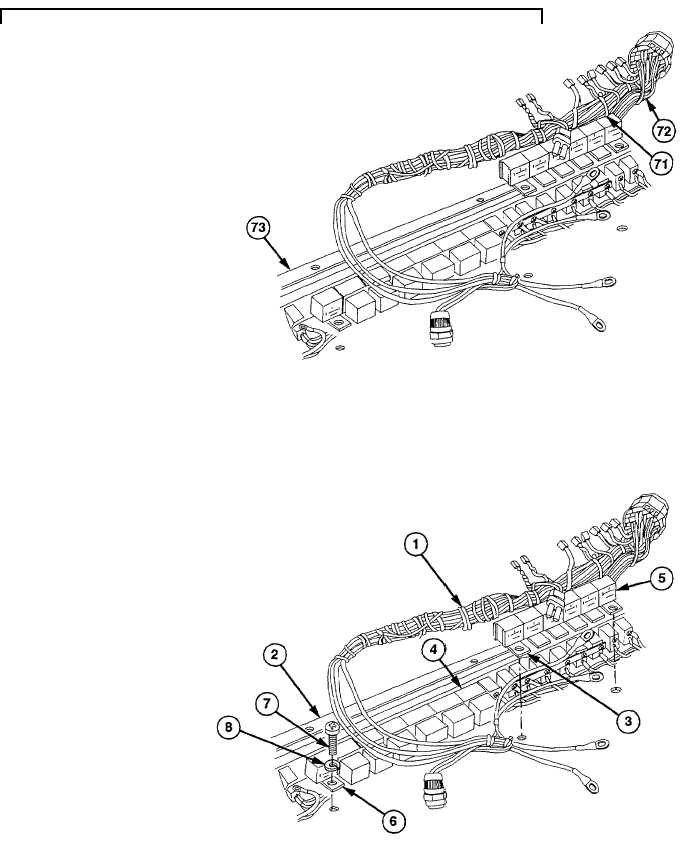

6-12. ELECTRONIC CONTROL BOX/LIGHTS WIRE HARNESS REPLACEMENT (CONT)
NOTE
Location of plastic cable ties should
be marked before removal.
(31)
Remove
plastic
cable
ties
(71)
securing
electronic control box/light wire harness (72).
(32)
Remove electronic control box/light wire harness
(72) from electronic control box (73).
b. Installation
(1)
Position electronic control box/light wire harness
(1) in electronic control box (2).
NOTE
Relay
sockets
are
installed
by
aligning slot on top of relay socket
no. 6 with tab on bottom of relay
socket no. 9.
(2)
Install relay socket no. 6 (3) on relay socket no.
9 (4).
(3)
Install relay sockets no. 1 (5), no. 6 (3), and no.
29 (6) on electronic control box (2) with three
screws (7) and new lockwashers (8).
