TM 9-2320-360-34-1
6-12. ELECTRONIC CONTROL BOX/LIGHTS WIRE HARNESS REPLACEMENT (CONT)
(16)

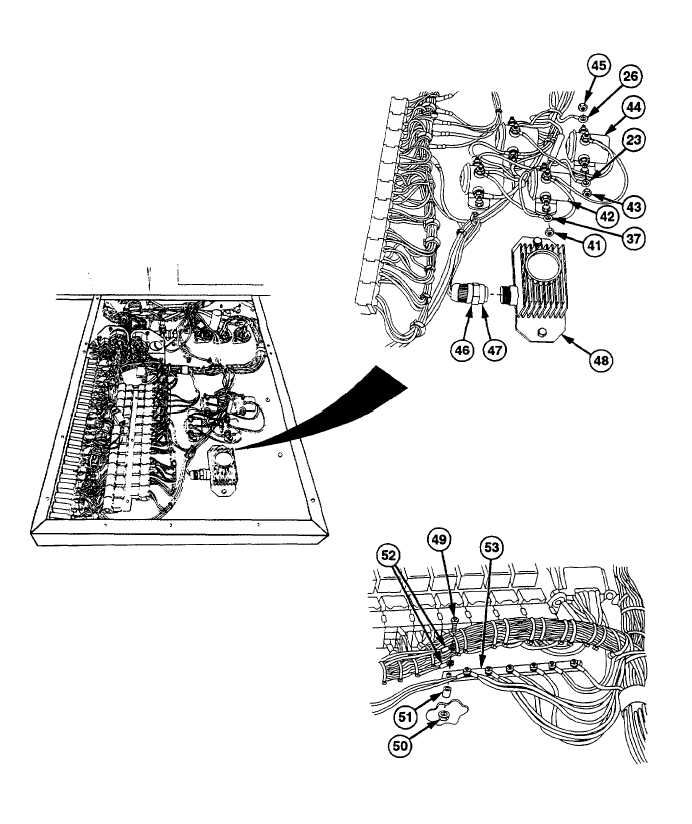

Remove nut (41) and wire no. 1075A (37) from
relay (42).
(17)
Remove nut (43) and wire no. 1175 (23) from
relay (44).
(18)
Remove nut (45) and wire no. 1109 (26) from
relay (44)
(19)
Remove
retainer
(46)
by
turning
counterclockwise.
(20)
Remove electrical connector (47) from flasher
unit (48) and retainer (46).
(21)
Remove screw (49), locknut (50), spacer (51),
and double ground wire no. 1435 (52) from
ground strip (53). Discard locknut.
6-156
|
