TM 9-2320-360-34-1
(9)

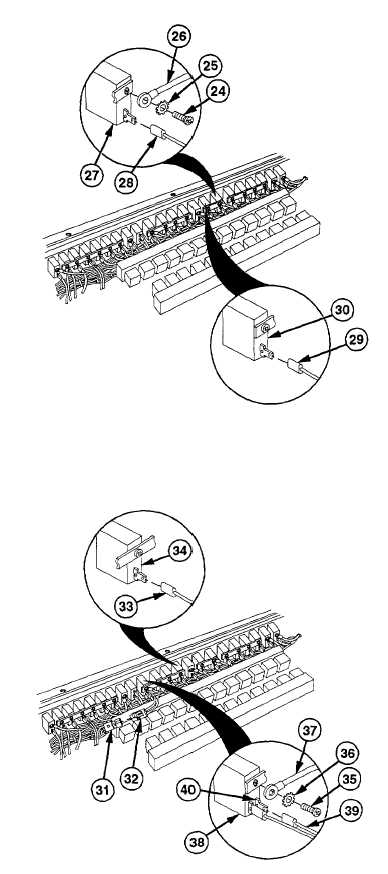

Remove screw (24), lockwasher (25), and wire
no. 1109 (26) from turn signal circuit breaker
(27). Discard lockwasher.
(10)
Remove wire no. 1925 (28) from turn signal
circuit breaker (27).
(11)
Remove wire no. 1009 (29) from stoplight circuit
breaker (30).
NOTE
Connector is removed by gently
prying up on dip and pulling on
connector.
(12)
Remove electrical connector (31) from electronic
control box wire harness connector (32).
(13)
Remove wire no. 1276 (33) from gages/warning
lights circuit breaker (34).
(14)
Remove screw (35), lockwasher (36), and wire
no. 1075A (37) from wiper circuit breaker (38).
Discard lockwasher.
(15)
Remove wire no. 1919 (39) from wire no.
1020A connector (40).
6-155
|
