TM 9-2320-360-34-1
6-12. ELECTRONIC CONTROL BOX/LIGHTS WIRE HARNESS REPLACEMENT (CONT)
(4)

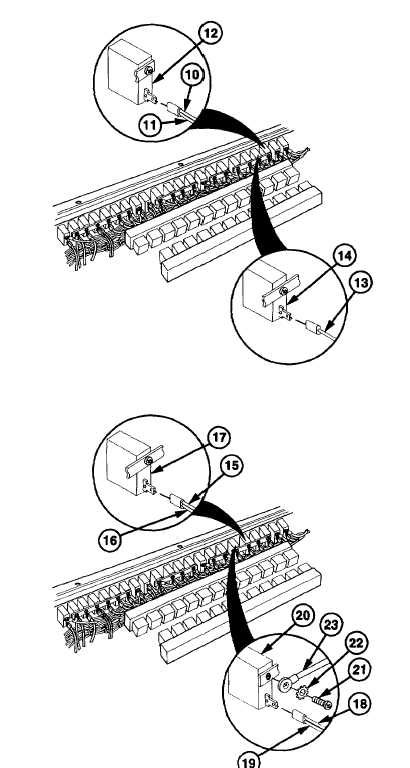

Remove wire no. 1292 (10) and wire no. 1927
(11) from headlights circuit breaker (12).
(5)
Remove wire no. 1835 (13) from clearance
lights circuit breaker (14).
(6)
Remove wire no. 1891 (15) and wire no. 1413
(16) from beacon backup circuit breaker (17).
(7)
Remove wire no. 1040 (18) and wire no. 1040C
(19) from work lights/horn circuit breaker (20).
(8)
Remove screw (21), lockwasher (22), and wire
no. 1175 (23) from work lights/horn circuit
breaker (20). Discard lockwasher.
6-154
|
