TM 9-2320-360-34-1
6-12. ELECTRONIC CONTROL BOX/LIGHTS WIRE HARNESS REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
Batteries disconnected (TM 9-2320-360-20).
Ties, Cable, Plastic (Item 60, Appendix B)
Top doghouse insulation removed
Locknut (Item 91, Appendix F)
(TM 9-2320-360-20).
Lockwashers (3) (Item 128, Appendix F)
Lockwashers (3) (Item 112, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
a. Removal
(1)

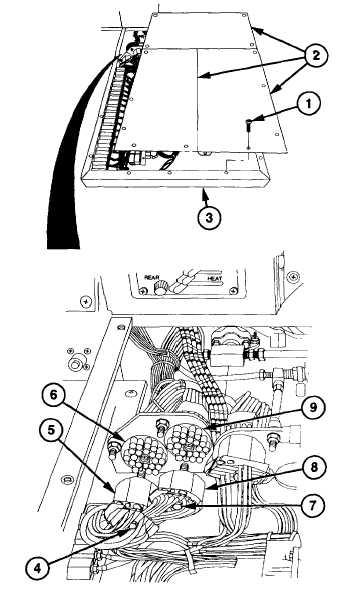

Remove 19 screws (1) and 3 panels (2) from
electronic control box (3).
(2)
Loosen
screw
(4)
and
remove
electrical
connector (5) from cab wire harness receptacle
(6).
(3)
Loosen
screw
(7)
and
remove
electrical
connector (8) from cab wire harness receptacle
(9).
Change 2 6-153
|
