TM 9-2320-360-34-1
6-11. ENGINE WIRE HARNESS REPLACEMENT (CONT)
(21)

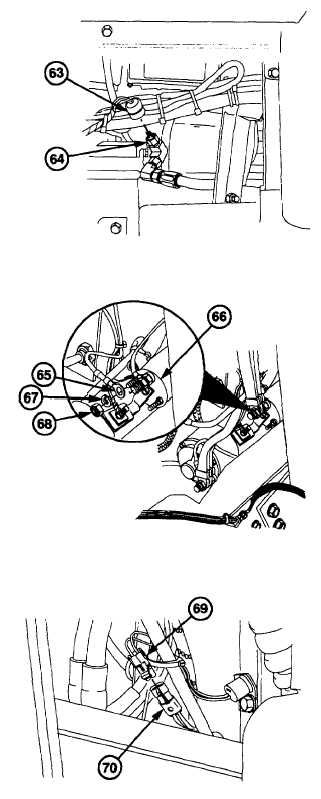

Install connector (63) on PTO oil pressure
sender (64).
(22)
Install wire no. 1045 (65) on starter solenoid
(66) with new lockwasher (67) and nut (68).
(23)
Install connector (69) on ether start temperature
sensor (70).
6-150
|
