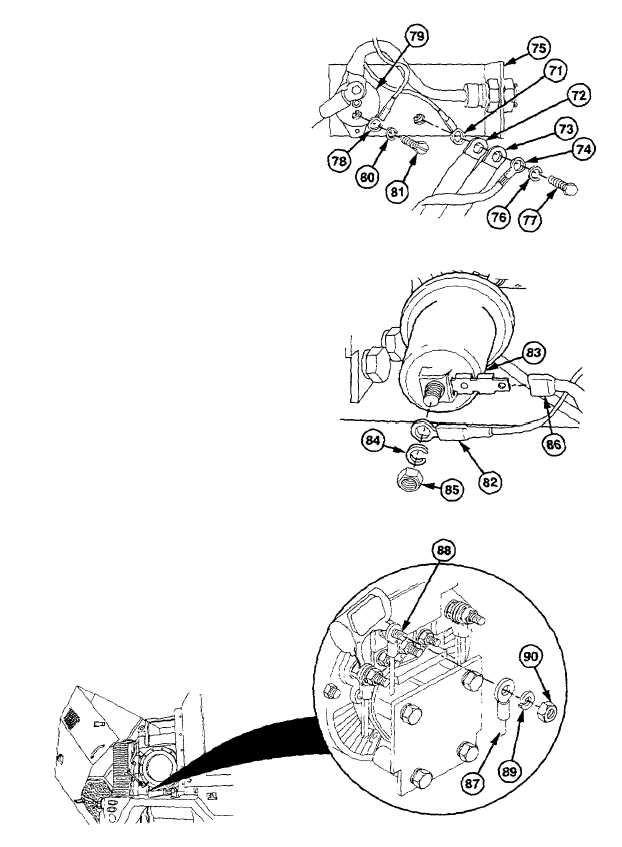

Install ground wire no. 1435 (71), ground strap
(72), ground strap (73), and wire no. 1128 (74)
on bracket (75) with new lockwasher (76) and
screw (77).
(25)
Install wire no. 1431 (78) on circuit breaker (79)
with new lockwasher (80) and screw (81).
(26)
Install wire no. 1113 (82) on oil pressure sender
(83) with new lockwasher (84) and nut (85).
(27)
Install ground wire no. 1435 (86) on oil pressure
sender (83).
CAUTION
Ensure wires to alternator are loose enough
to allow for alternator belt adjustment Failure
to comply may result in damage to wire
harness.
(28)
Install wire no. 1020 (87) on 24-volt alternator
IGN (ignition) terminal (88) with new lockwasher
(89) and nut (90).
