TM 9-2320-360-34-1
NOTE
Step (15) applies only to DDEC II vehicles.
(15)

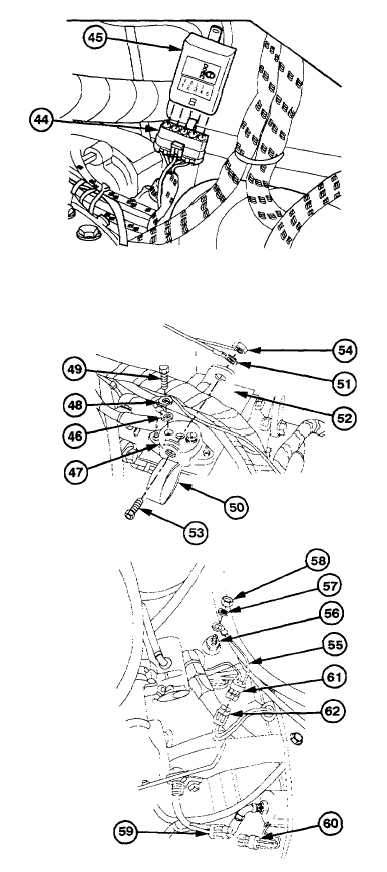

Install electrical connector (44) on coolant level
module (45).
(16) Install wire no. 1866 (46) on circuit breaker (47)
with new lockwasher (48) and screw (49).
NOTE
Ground wire no. 1435 is only to DDEC II
vehicles.
(17) Install cushion clip (50) and ground wire no.
1435 (51) on engine standoff bracket (52) with
screw (53) and new locknut (54).
(18) Install wire no. 1068 (55) on transmission
temperature
sending
unit
(56)
with
new
lockwasher (57) and nut (58).
(19)
Install electrical connector (59) on PTO solenoid
(60).
(20) Install connector (61) on transmission lockup
solenoid (62).
Change 3 6-149
|
