TM 9-2320-360-34-1
6-11. ENGINE WIRE HARNESS REPLACEMENT (CONT)
(12)

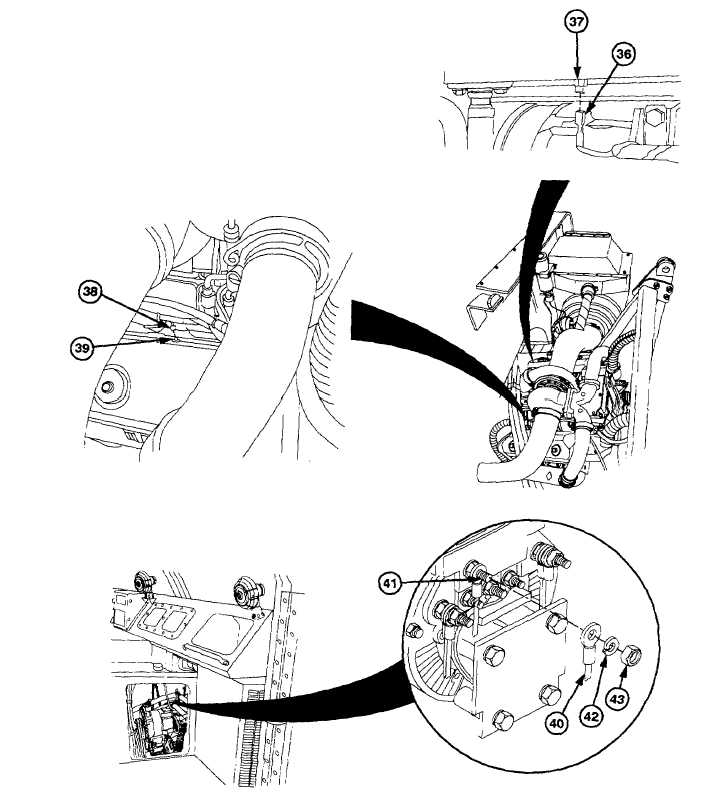

Install wire no. 1716 (36) on left engine brake
terminal (37).
(13)
Install wire no. 1715 (38) on right engine brake
terminal (39).
(14)
Install wire no. 1020A (40) on 12-volt alternator
IGN (ignition) terminal (41) with new lockwasher
(42) and nut (43).
6-148.2 Change 3
|
