TM 9-2320-360-34-1
6-11. ENGINE WIRE HARNESS REPLACEMENT (CONT)
(18)

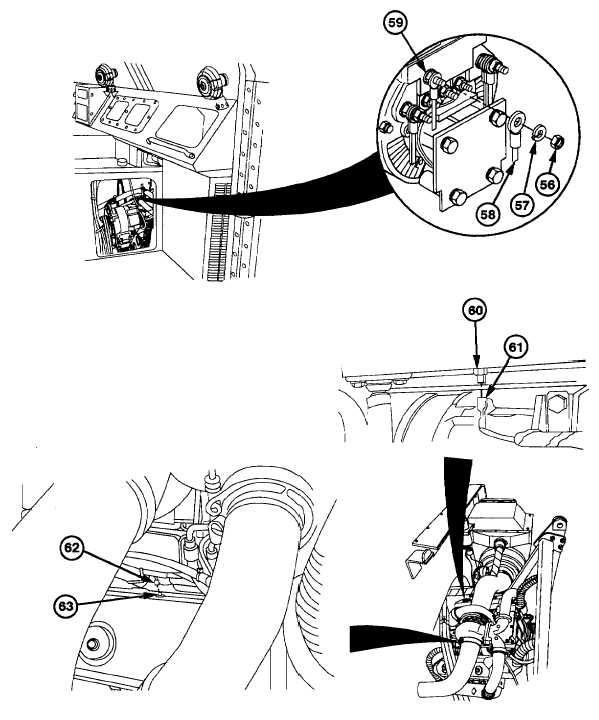

Remove nut (56), lockwasher (57), and wire no.
1020A (58) from 12-volt alternator IGN (ignition)
terminal (59). Discard lockwasher.
(19)
Remove wire no. 1716 (60) from left engine
brake terminal (61).
(20)
Remove wire no. 1715 (62) from right engine
brake terminal (63).
6-144 Change 3
|
