TM 9-2320-360-34-1
(21)

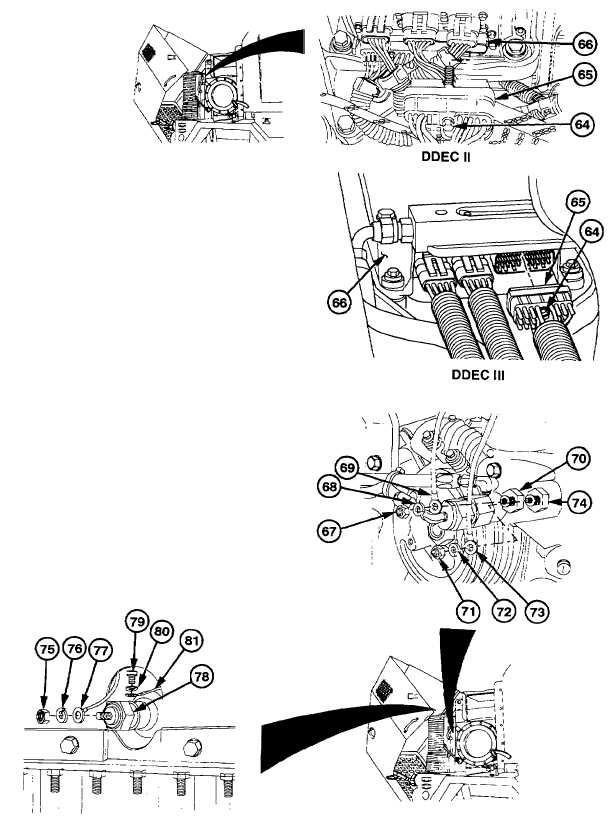

Loosen screw (64) and remove connector (65)
from ECM (66).
(22)
Remove nut (67), lockwasher (68), and wire no.
1320 (69) from coolant temperature sending unit
(70). Discard lockwasher.
NOTE
Steps (23, 24, and 25) apply only to
DDEC II vehicles.
(23)
Remove nut (71), lockwasher (72), and wire no.
524
(73)
from
alarmstat
(74).
Discard
lockwasher.
(24)
Remove nut (75), lockwasher (76), and wire no.
068 (77) from coolant level sensor (78). Discard
lockwasher.
(25)
Remove screw (79), lockwasher (80), and wire
no. 1788 (81) from coolant level sensor (78).
Discard lockwasher.
Change 3 6-145
|
