TM 9-2320-360-34-1
6-11. ENGINE WIRE HARNESS REPLACEMENT (CONT)
(8)

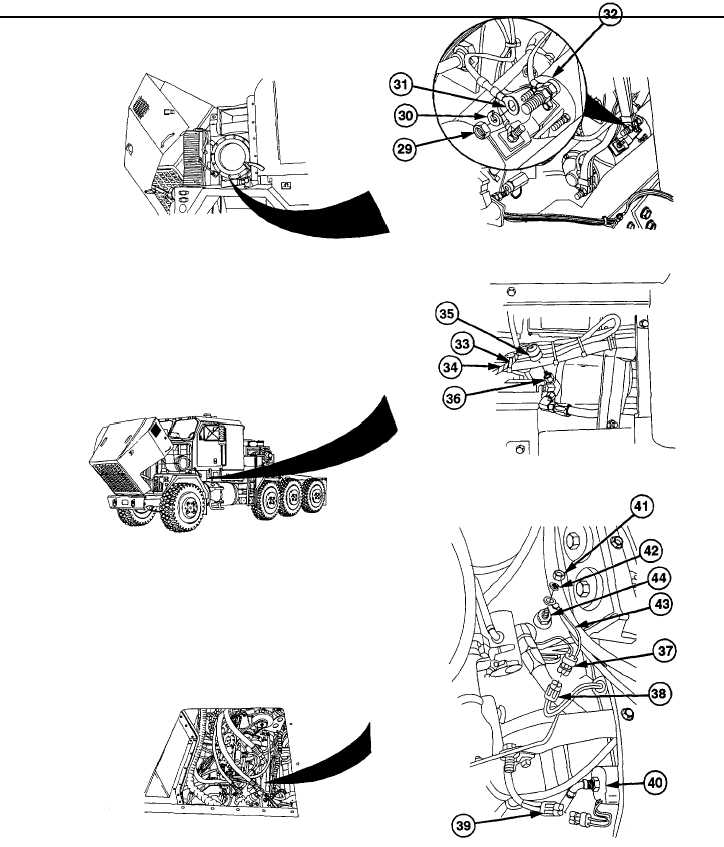

Remove nut (29), lockwasher (30), and wire no.
1045 (31) from starter solenoid (32). Discard
lockwasher.
NOTE
Locations of plastic cable ties should
be marked before removal.
(9)
Remove plastic cable ties (33) securing engine
wire harness (34) at left side of engine as
required.
(10)
Remove connector (35) from PTO oil pressure
sender (36).
(11)
Remove
connector (37) from transmission
lockup solenoid (38).
(12)
Remove connector (39) from PTO solenoid (40).
(13)
Remove nut (41), lockwasher (42), and wire no.
1068
(43)
from
transmission
temperature
sending unit (44). Discard lockwasher.
6-142
|
