TM 9-2320-360-34-1
(3)

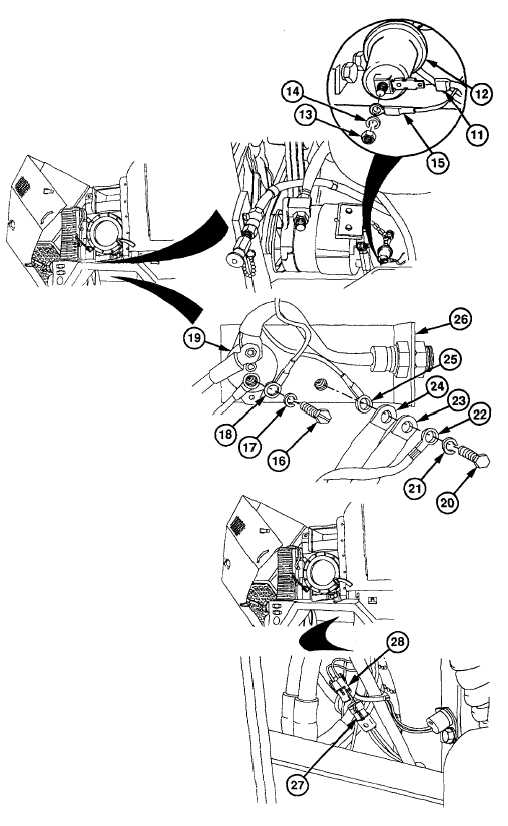

Remove ground wire no. 1435 (11) from oil
pressure sender (12).
(4)
Remove nut (13), lockwasher (14), and wire no.
1113 (15) from oil pressure sender (12).
Discard lockwasher.
(5)
Remove screw (16), lockwasher (17), and wire
no. 1431 (18) from circuit breaker (19). Discard
lockwasher.
(6)
Remove screw (20), lockwasher (21), wire no.
1128 (22), ground strap (23), ground strap (24),
and ground wire no. 1435 (25) from bracket
(26). Discard lockwasher.
NOTE
Connectors are removed by gently
prying
on
tab
and
pulling
on
connector.
(7)
Remove
connector
(27)
from
ether
start
temperature sensor (28).
6-141
|
