6-11. ENGINE WIRE HARNESS REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
Engine hood opened (TM 9-2320-360-10).
Tags, Identification (Item 56, Appendix B)
Batteries disconnected (TM 9-2320-360-20).
Ties, Cable, Plastic (Item 60, Appendix B)
Access panels removed (TM 9-2320-360-20).
Locknut (Item 96, Appendix F)
Inner fender removed (left side only)
Locknut (Item 101, Appendix F)
(TM 9-2320-360-20).
Lockwashers (4) (Item 117, Appendix F)
Lockwashers (2) (Item 137, Appendix F)
Tools and Special Tools
Lockwashers (2) (Item 116, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Lockwashers (2) (Item 118, Appendix F)
Lockwasher (Item 120, Appendix F)
a.
Removal
WARNING
Engine
must
be
cool
before
performing maintenance. Failure to
comply may result in injury to
personnel.
NOTE
Tag and mark wires before removal.
(1)
Deleted.
(2)

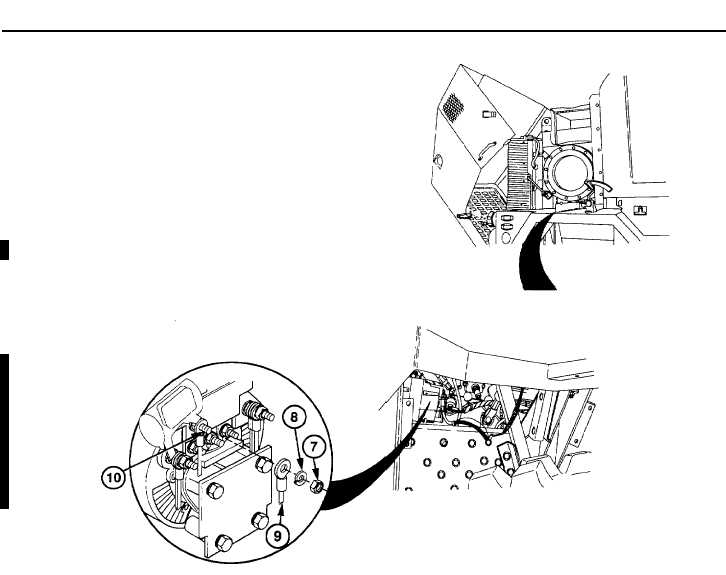

Remove nut (7), lockwasher (8),
and wire no. 1020 (9) from 24V
alternator ignition terminal (10).
Discard lockwasher.
