TM 9-2320-360-34-1
6-10. DDEC POWER HARNESS REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
Engine hood opened (TM 9-2320-360-10).
Tags, Identification (Item 56, Appendix B)
Batteries disconnected (TM 9-2320-360-20).
Ties, Cable, Plastic (Item 60, Appendix B)
Lower engine access panels removed
Lockwashers (3) (Item 126, Appendix F)
(TM 9-2320-360-20).
Lockwashers (2) (Item 112, Appendix F)
Stowage box removed (TM 9-2320-360-20).
Front engine access panels removed
Personnel Required
(TM 9-2320-360-20).
Two
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
a.
Removal
NOTE
Tag and mark wires before removal.

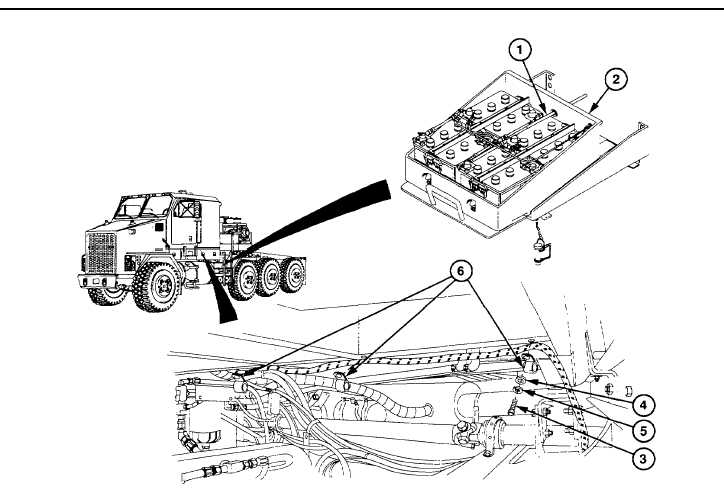

(1)
Remove DDEC wire harness (1)
from battery box (2).
(2)
Remove
three
screws
(3),
washers (4), lockwashers (5), and
cushion clips (6) from under cab.
Discard lockwashers.
Change 3 6-135
|
