TM 9-2320-360-34-1
6-9. STE-ICE WIRE HARNESS REPLACEMENT (CONT)
d.
STE-ICE Chassis Wire Harness Installation
NOTE
·
Evenly distribute any slack in
harness. Do not make any
connections.
·
The 6-pin connector end should
be toward front of vehicle; 3-part
end is threaded into battery box.
(1)

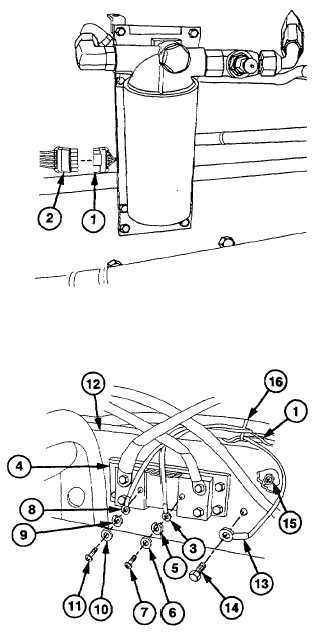

Position STE-ICE chassis wire harness (1)
in HET Tractor.
(2)
Connect 6-pin connector (2) to STE-ICE
engine wire harness (1).
(3)
Install wire no. 1829 (3) on shunt (4) with
new lockwasher (5), washer (6), and
screw (7).
(4)
Install wire no. 1828 (8) on shunt (4) with
new lockwasher (9), washer (10), and
screw (11).
(5)
Coat 1 in. (2.5 cm) area around hole in
frame (12) with anti-corrosion grease.
(6)
Install wire no. 1821 (13) on frame (12)
with screw (14) and new locknut (15) with
aid of assistant.
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(7)
Secure STE-ICE wire harness (1) with
plastic cable ties (16).
e.
Follow-On Maintenance
(1)
Install stowage box (TM 9-2320-360-20).
(2)
Install
engine
access
panels
(TM 9-2320-360-20).
(3)
Connect batteries (TM 9-2320-360-20).
(4)
Close engine hood (TM 9-2320-360-10).
(5)
Install inner fender (TM 9-2320-360-20).
6-134 Change 1
|
