TM 9-2320-360-34-1
6-10. DDEC POWER HARNESS REPLACEMENT (CONT)
NOTE
Location of plastic cable ties should
be marked before removal.
(3)

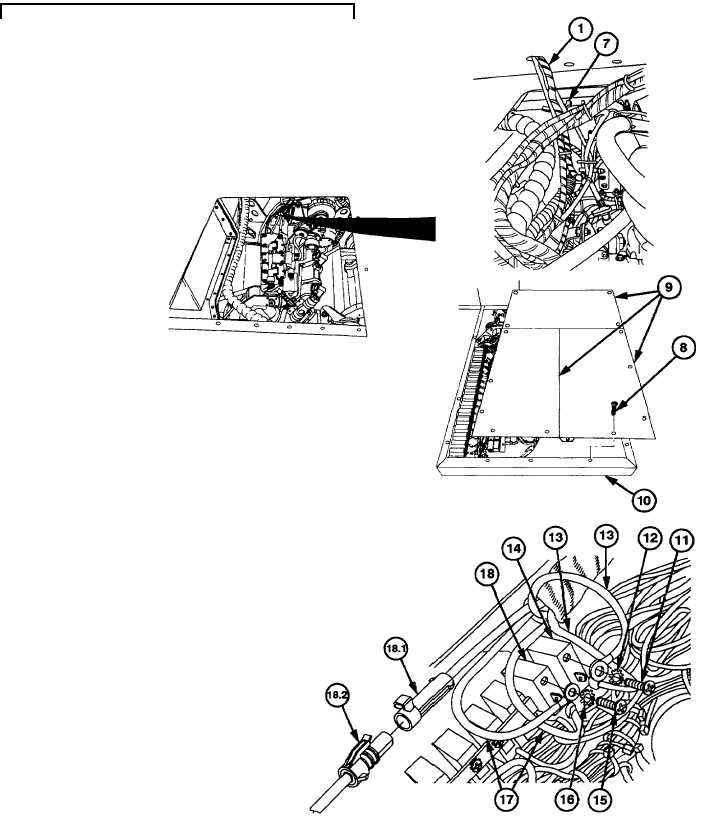

Remove plastic cable ties (7)
securing DDEC wire harness (1).
(4)
Remove 19 screws (8) and 3
covers (9) from electronic control
box (10).
(5)
Remove screw (11), lockwasher
(12), and wire no. 240 (13) from
circuit breaker (14). Discard
lockwasher.
(6)
Remove screw (15), lockwasher
(16), and wire no. 241 (17) from
circuit breaker (18). Discard
lockwasher.
(7)
Disconnect wire no. 240 (13)
from DDEC circuit breaker (14).
(8)
Disconnect wire no. 241 (17)
from DDEC circuit breaker (18).
NOTE
Step (8.1) applies to DDEC Ill vehicles
only.
(8.1)
Disconnect wire no. 953 (18.1)
from control box harness (18.2).
(9)
Push DDEC wire harness (1) from
electronic control box (10) into
engine compartment.
6-136 Change 3
|
