TM 9-2320-360-34-1
c.
STE-ICE Chassis Wire Harness Removal
NOTE
Wires no. 1813, no. 1822, and no.
1814 are removed from battery box at
the same time STE-ICE wire harness
is removed.
(1)

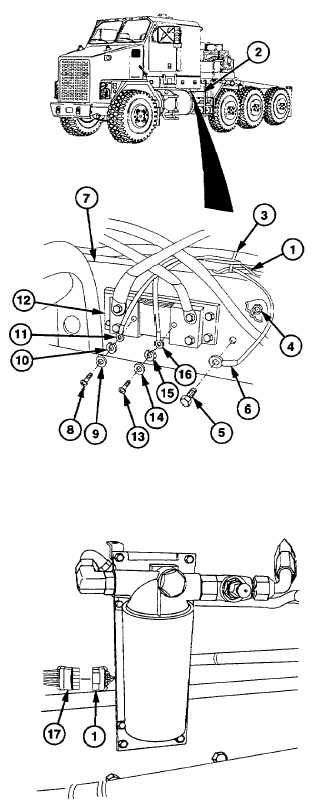

Remove STE-ICE wire harness (1) from
battery box (2).
NOTE
Locations of plastic cable ties should
be marked before removal.
(2)
Remove plastic cable ties (3) securing
STE-ICE wire harness (1).
(3)
Remove locknut (4), screw (5), and wire
no. 1821 (6) from frame (7) with aid of
assistant. Discard locknut.
(4)
Remove
screw
(8),
washer
(9),
lockwasher (10), and wire no. 1828 (11)
from shunt (12). Discard lockwasher.
(5)
Remove
screw
(13),
washer
(14),
lockwasher (15), and wire no. 1829 (16)
from shunt (12). Discard lockwasher.
(6)
Disconnect 6-pin connector (17) from
STE-ICE engine wire harness (1).
(7)
Remove STE-ICE chassis wire harness
(1) from HET Tractor.
Change 1 6-133
|
