6-9. STE-ICE WIRE HARNESS REPLACEMENT (CONT)
(27)

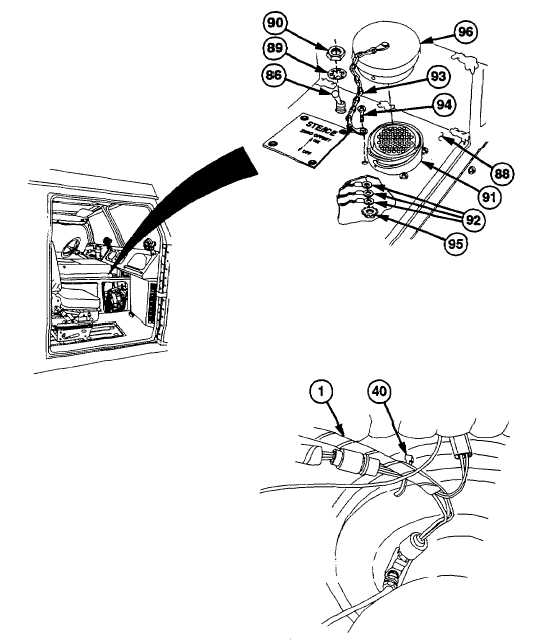

Install STE-ICE ZERO OFFSET
switch (86) on doghouse (88) with
new lockwasher (89) and nut (90).
(28)
Install STE-ICE connector (91),
three ground wires (92), and chain
(93) on doghouse (88) with four
screws (94) and new locknuts
(95).
(29)
Install cover (96) on STE-ICE
connector (91).
CAUTION
The STE-ICE wire harness must be
secured and positioned away from
hot or rotating parts. Failure to
comply will result in damage to
equipment.
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(30)
Secure STE-ICE wire harness (1)
with plastic cable ties (40).
