TM 9-2320-360-34-1
(7)

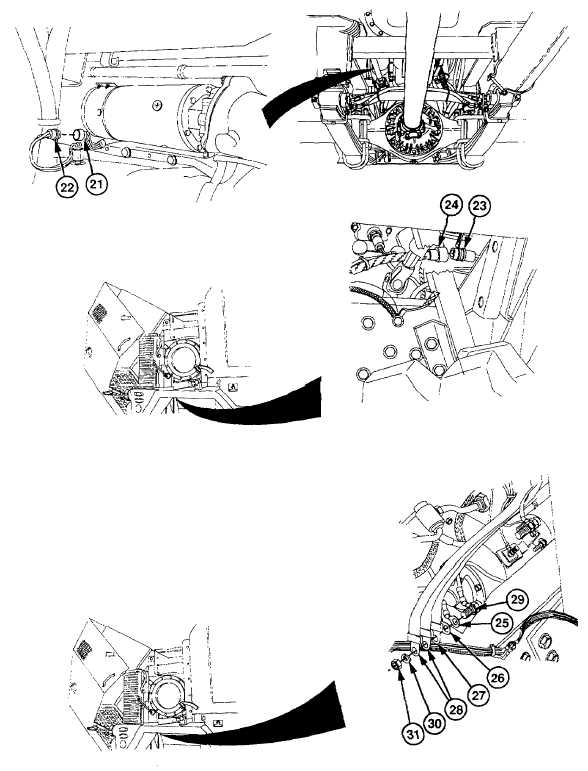

Install
connector
(21)
on
oil
temperature sensor (22).
(8)
Install connector (23) on air box
pressure sensor (24).
(9)
Install wire no. 1819 (25), ground
strap (26), negative (-) cable no.
1128 (27), and two negative (-)
cables no. 1138 (28) on starter
motor negative (-) terminal (29)
with new lockwasher (30) and nut
(31).
STEERING COLUMN REMOVED FOR CLARITY
6-127
|
