TM 9-2320-360-34-1
6-9. STE-CE WIRE HARNESS REPLACEMENT (CONT)
(10)

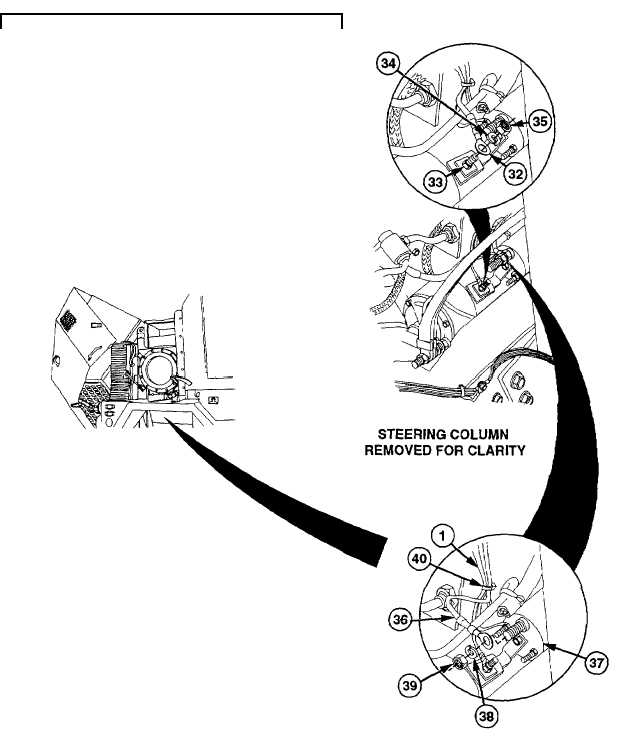

Install wire no. 1818 (32) on
starter motor field terminal (33)
with new lockwasher (34) and nut
(35).
(11)
Install wire no. 1816(36) on
starter solenoid (37) with new
lockwasher (38) and nut (39).
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(12)
Secure STE/ICE wire harness (1)
with plastic cable ties (40).
6-128
|
