6-9. STE-ICE WIRE HARNESS REPLACEMENT (CONT)
(1)

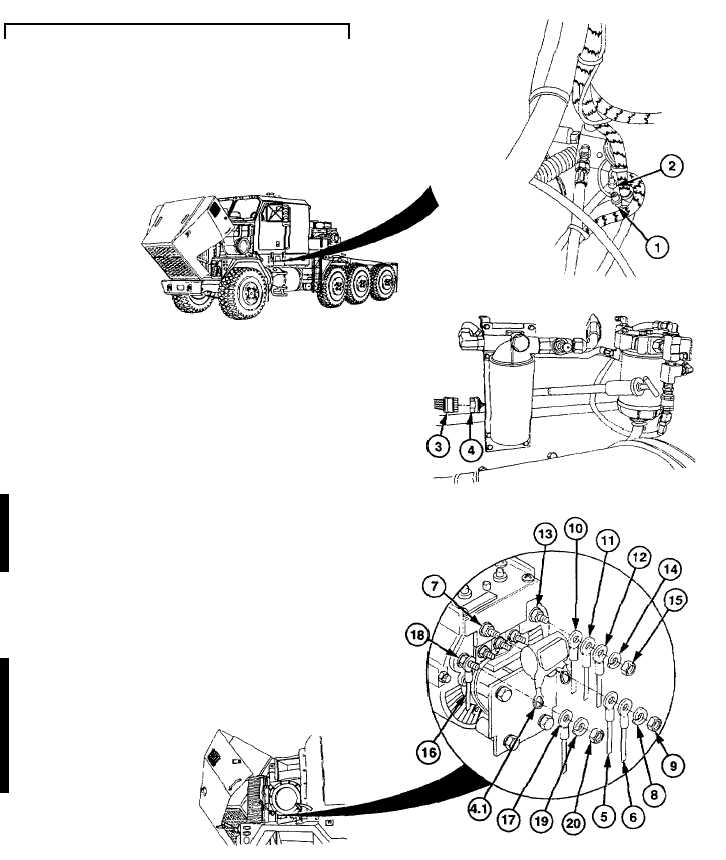

Position STE-ICE engine wire
harness (1) in HET Tractor.
(2)
Connect fuel pressure transducer
plug (2) to STE-ICE engine wire
harness (1).
(3)
Connect 6-pin connector (3) to
STE-ICE chassis wire harness
(4).
CAUTION
Ensure wires to alternator are loose
enough to allow for alternator belt
adjustment. Failure to comply may
result in damage to wire harness.
(4)
Install EMI capacitor (4.1), wire
no. 1953 (5), and wire no. 1020
(6) on 24-volt alternator IGN
(ignition) terminal (7) with new
lockwasher (8) and nut (9).
(5)
Install wire no. 1820 (10), wire
no. 1831 (11), and wire no. 1280
(12) on 24-volt alternator positive
(+)
terminal
(13)
with
new
lockwasher (14) and nut (15).
(6)
Install wire no. 1815 (16) and
wire no. 1128 (17) on 24-volt
alternator negative (-) terminal
(18) with new lockwasher (19) and
nut (20).
