TM 9-2320-360-34-1
(30)

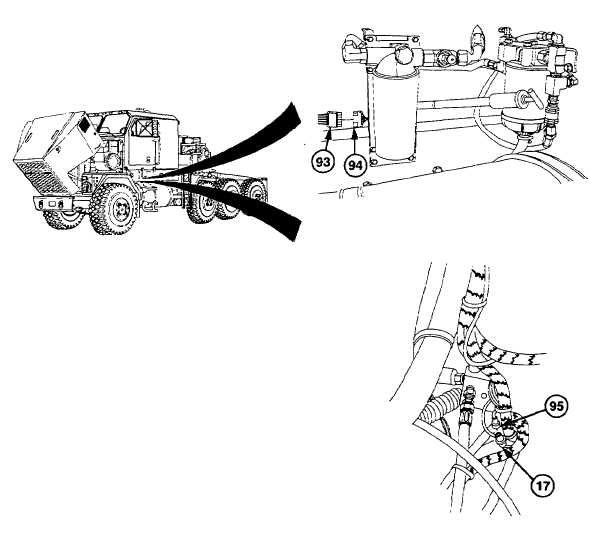

Disconnect 6-pin connector (93)
from
STE-ICE
chassis
wire
harness (94).
(31)
Disconnect
fuel
pressure
transducer plug (95) from STE-
ICE engine wire harness (17).
(32)
Remove STE-ICE engine wire
harness (17) from HET Tractor
with aid of assistant.
b.STE-ICE Engine Wire Harness Installation
NOTE
·
Evenly distribute any slack in harness. Do not make any connections.
·
STE-ICE 4-pin connectors are not interchangeable. Refer to table 6-3 for
proper locations.
Table 6-3. STE-ICE Connector Locations
Connector Location
Wire Numbers at Plug
Engine Oil Temp
1952, 1938A, 1824, 1825
Air Box Pressure
1945, 1946, 1824, 1825
Fuel Return psi
1949, 1951, 1824, 1825
Turbo Outlet pressure
1943, 1944, 1824, 1825
Water temperature
1939, 1940, 1824, 1825
Fuel psi
1941, 1942, 1824, 1825
Cleaner pressure drop
1947, 1947, 1824, 1825
Change 1 6-125
|
