6-9. STE-ICE WIRE HARNESS REPLACEMENT (CONT)
(26)

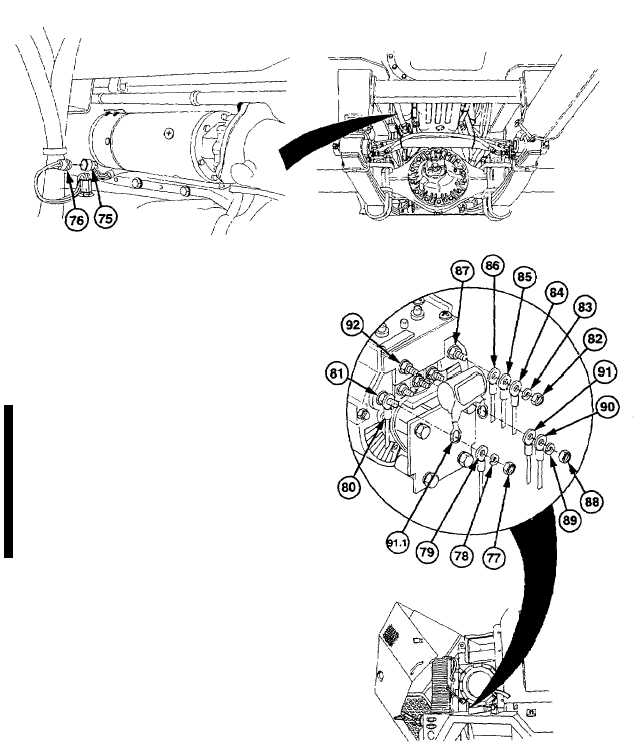

Remove connector (75) from oil
temperature sensor (76).
(27)
Remove
nut
(77),
lockwasher
(78), wire no. 1128 (79), and wire
no. 1815 (80) from 24-volt
alternator negative (-) terminal
(81). Discard lockwasher.
(28)
Remove
nut
(82),
lockwasher
(83), wire no. 1280 (84), wire no.
1831 (85), and wire no. 1820 (86)
from 24-volt alternator positive (+)
terminal
(87).
Discard
lockwasher.
(29)
Remove
nut
(88),
lockwasher
(89), wire no. 1020 (90), wire no.
1953 (91) and EMI capacitor
(91.1) from 24-volt alternator IGN
terminal
(92).
Discard
lockwasher.
