TM 9-2320-360-34-1
(23)

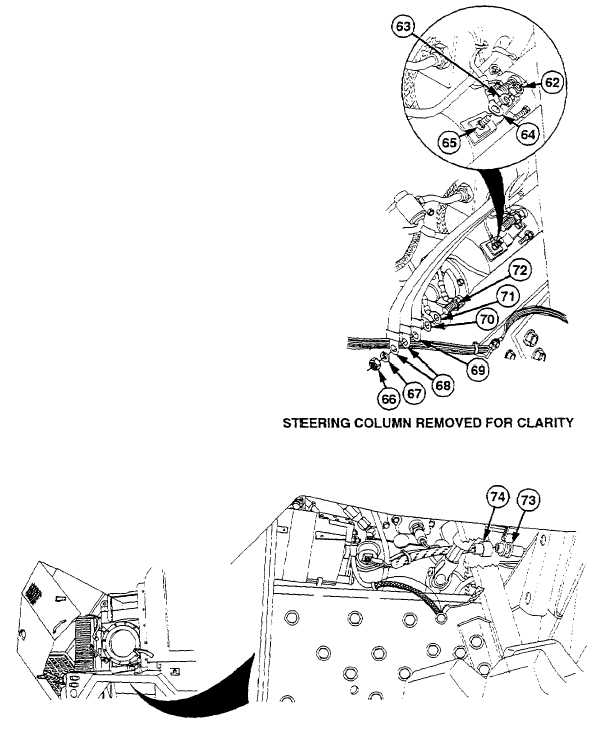

Remove
nut
(62),
lockwasher
(63), and wire no. 1818 (64) from
starter motor field terminal (65).
Discard lockwasher.
(24)
Remove
nut
(66),
lockwasher
(67), two negative (-) cables no.
1138 (68), negative (-) cable no.
1128 (69), ground strap (70), and
wire no. 1819 (71) from starter
motor negative (-) terminal (72).
Discard lockwasher.
(25)
Remove connector (73) from air
box pressure sensor (74).
6-123
|
