TM 9-2320-360-34-1
6-9. STE-ICE WIRE HARNESS REPLACEMENT (CONT)

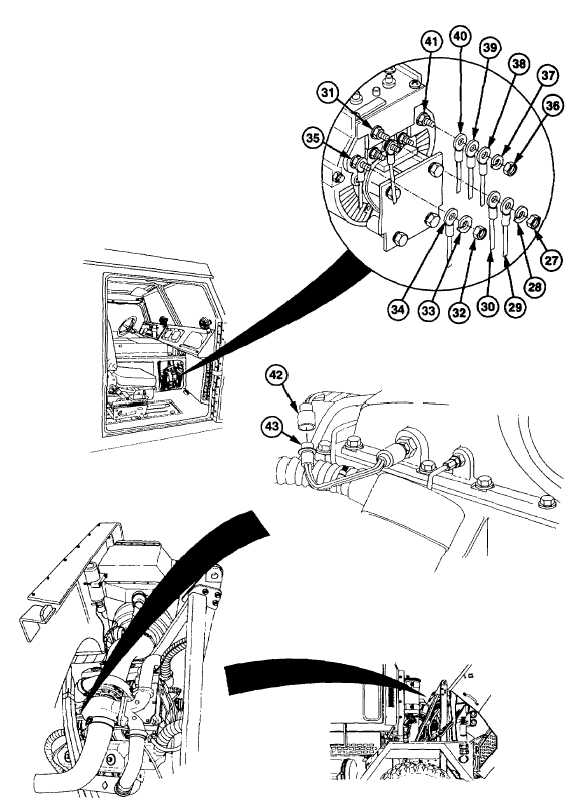

(10)
Remove
nut
(27),
lockwasher
(28), wire no. 1020 (29), and wire
no. 1933 (30) from 12-volt
alternator IGN (ignition) terminal
(31). Discard lockwasher.
(11)
Remove
nut
(32),
lockwasher
(33), and wire no. 1815 (34) from
12-volt
alternator
negative
(-)
terminal
(35).
Discard
lockwasher.
(12)
Remove
nut
(36),
lockwasher
(37), wire no. 1831 (38), wire no.
1430 (39), and wire no 1871 (40)
from 12-volt alternator positive (+)
terminal
(41).
Discard
lockwasher.
(13)
Remove
connector
(42)
from
turbo boost sensor (43).
6-120 Change 2
|
