TM 9-2320-360-34-1
(5)

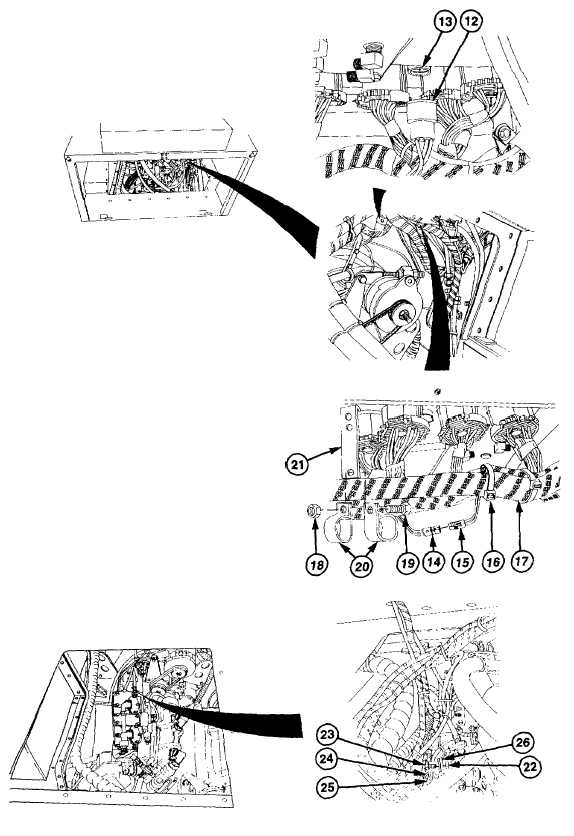

Remove
connector
(12)
from
resistor (13).
(6)
Remove
connector
(14)
from
connector (15).
NOTE
Locations of plastic cable ties should
be marked before removal.
(7)
Remove plastic cable ties (16)
securing STE-ICE wire harness
(17).
(8)
Remove locknut (18), screw (19),
and two clips (20) from cab
standoff bracket (21). Discard
locknut.
(9)
Remove locknut (22), screw (23),
clip (24), and wire no. 1435 (25)
from engine standoff bracket (26).
6-119
|
