TM 9-2320-360-34-1
NOTE
Locations of plastic cable ties should
be marked before removal.
(14)
Remove plastic cable ties (16)
securing STE-ICE wire harness
wire harness (17).
NOTE
Fuel pressure transducer connector
and water temperature connector are
not interchangeable.
(15)

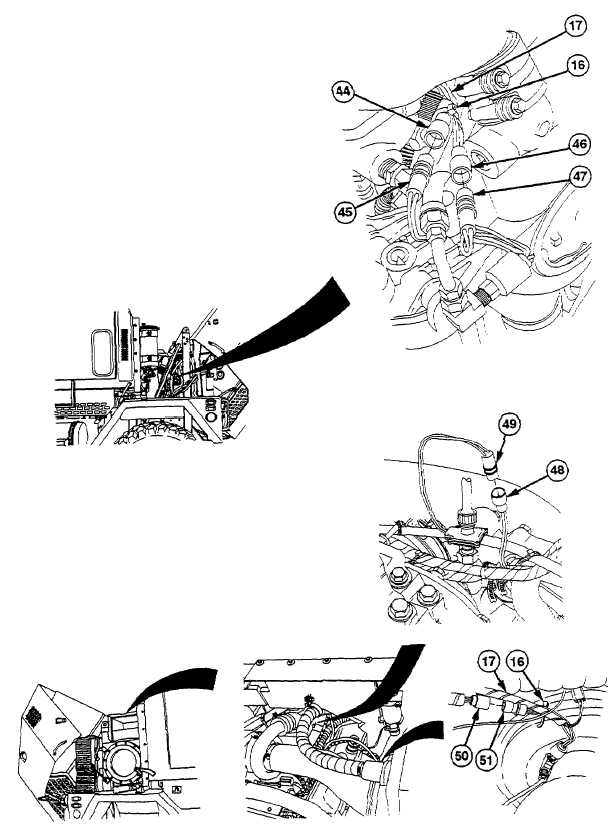

Remove
connector
(44)
from
water temperature sensor (45).
(16)
Remove connector (46) from fuel
pressure transducer (47).
(17)
Remove
connector
(48)
from
tachometer pulse generator (49).
NOTE
Locations of plastic cable ties should
be marked before removal.
(18)
Remove plastic cable ties (16)
securing STE-ICE wire harness
(17).
(19)
Remove connector (50) from air
cleaner sensor (51)
6-121
|
