TM 9-2320-360-34-1
6-9. STE-ICE WIRE HARNESS REPLACEMENT
This task covers:
Removal
Follow-On Maintenance
Installation
INITIAL SETUP
Equipment Condition
Materials/Parts (Cont)
Engine hood opened (TM 9-2320-360-10).
Locknuts (2) (Item 96, Appendix F)
Batteries disconnected (TM 9-2320-360-20).
Locknut (Item 101, Appendix F)
Access panels removed (TM 9-2320-360-20).
Locknut (Item 81, Appendix F)
Stowage box removed (TM 9-2320-360-20).
Lockwashers (4) (Item 139, Appendix F)
Inner fender removed (left side only)
Lockwasher (Item 113, Appendix F)
(TM 9-2320-360-20).
Lockwasher (Item 114, Appendix F)
Lockwasher (Item 116, Appendix F)
Tools and Special Tools
Lockwasher (Item 122, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Lockwasher (Item 135, Appendix F)
Wrench, Torque, 0-150 Lb-in. (Item 234,
Lockwasher (Item 137, Appendix F)
Appendix E)
Lockwasher (Item 144, Appendix F)
Materials/Parts
Personnel Required
Grease, Anticorrosion (Item 31, Appendix B)
Two
Tags, Identification (Item 56, Appendix B)
Ties, Cable, Plastic (Item 60, Appendix B)
a.
STE-ICE Engine Wire Harness Removal

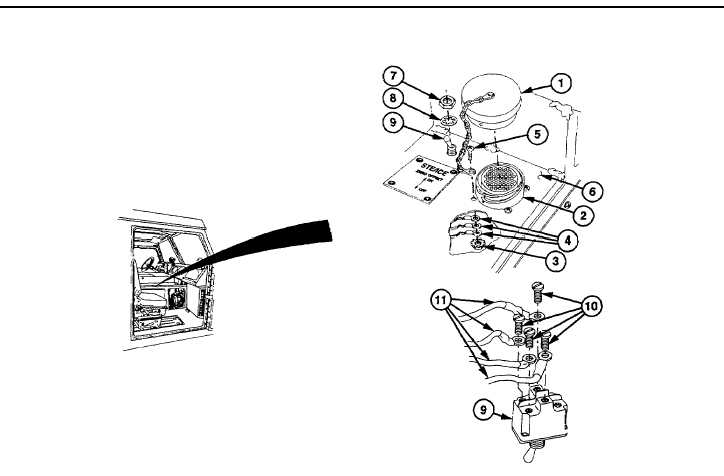

(1)
Remove cover (1) from STE-ICE
connector (2).
(2)
Remove four locknuts (3), three
ground wires (4), screws (5), and
STE-ICE
connector
(2)
from
doghouse (6). Discard locknuts.
(3)
Remove nut (7), lockwasher (8),
and STE-ICE ZERO OFFSET
switch (9) from doghouse (6).
Discard lockwasher.
NOTE
Tag and mark wires before removal.
(4)
Remove four screws (10) and
wires (11) from STE-ICE ZERO
OFFSET switch (9).
6-118 Change 1
|
