TM 9-2320-360-34-1
(96)

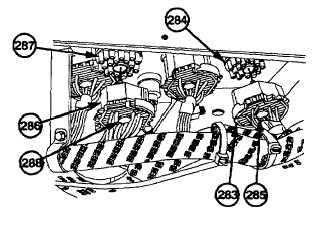

Install orange harness connector (283) on
orange cab connector (284) and tighten
screw (285).
(97)
Install red harness connector (286) on red
cab connector (287) and tighten screw
(288).
c.
Follow-On Maintenance
(1)
Install catwalk (TM 9-2320-360-20).
(2)
Install stowage box (TM 9-2320-360-20).
(3)
Install access panels (TM 9-2320-360-20).
(4)
Connect batteries (TM 9-2320-360-20).
(5)
Install
exhaust
heat
shield
(TM 9-2320-360-20).
(6)
Close engine hood (TM 9-2320-360-10).
(7)
Install inner fender (TM 9-2320-360-20).
Change 1 6-117
|
