TM 9-2320-360-34-1
(76)

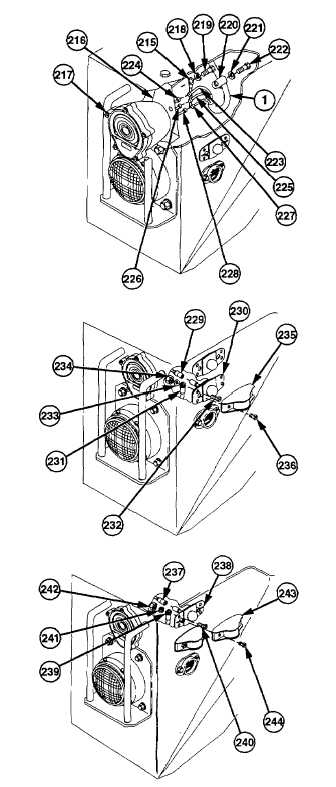

Install ground wire no. 1435 (215) on
mounting bracket (216) and left front
composite light (217) with new lockwasher
(218) and screw (219).
(77)
Install cushion clip (220) on harness (1).
(78)
Install cushion dip (220) on mounting
bracket (216) and left front composite light
(217) with new lockwasher (221) and
screw (222).
(79)
Install wire no. 1012 (223) on connector
no. 491 (224), wire no. 1002 (225) on
connector no. 460 (226), and wire no.
1680 (227) on connector no. 20 (228) of
left front composite light (217).
(80)
Install wire no. 1002 (229) on left marker
light base (230).
(81)
Install ground wire no. 1435 (231) on
mounting screw (232) with washer (233)
and new locknut (234).
(82)
Install marker light c over (235) on left
marker light base (230) with two screws
(236).
(83)
Install wire no. 1012 (237) on left marker
light base (238).
(84)
Install ground wire no. 1435 (239) on
mounting screw (240) with washer (241)
and new locknut (242).
(85)
Install marker light cover (243) on left
marker light base (238) with two screws
(244).
6-113
|
