TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(86)

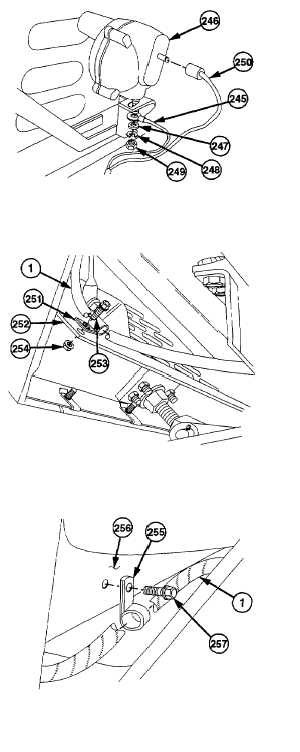

Install ground wire no. 1435 (245) on
blackout drive light (246) with washer
(247), new lockwasher (248), and nut
(249).
(87)
Install wire no. 1679 (250) on blackout
drive light (246).
(88)
Install cushion clip (251) on harness (1)
and hood (252) with screw (253) and new
locknut (254).
(89)
Install cushion clip (255) on harness (1)
and fan shroud (256) with screw (257).
6-114
|
